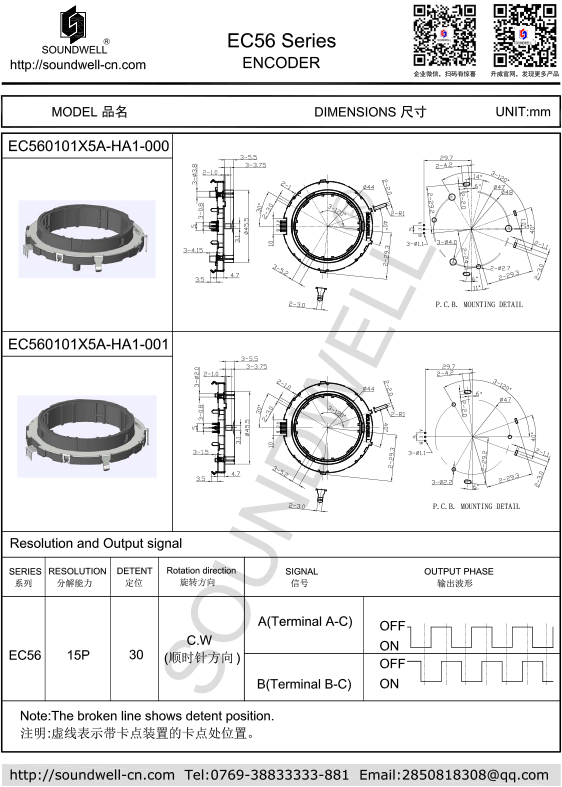

Encoder model： |
EC56-HA1 series | |
| Applications： | Audio, electric fans, air fryers and other related electronic devices; | |
| Product Features: |
Low profile with more space for customer; Smooth rotational feel and highly reliable performance; Hollow encoder to enable flexible design in the center ring. |
|
| Functions： |
Mainly used to adjust volume, adjust temperature, frequency modulation, and function switching. |
|
| Main Specifications: |
Dimensions: φ56mm Rated voltage: DC 5V Number of detent: 30 Pulses: 15 Working temperature: -40℃~85℃ Rotational life: 30,000 cycles Min |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 100~300gf.cm
2. Rotational angle: 360°
3. Number of detent: 30 (Step angle: 12±3°)
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 15 pulses/360°
2. Phase difference: ≥6ms
3. Rated voltage: DC 5V
4. Insulation resistance: 100MΩ 1 Minute at DC 500V
5. Dielectric voltage: 1 Minute at AC 300V
THREE、ENDURANCE CHARACTERISTIC
1、Rotational life: 30,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
