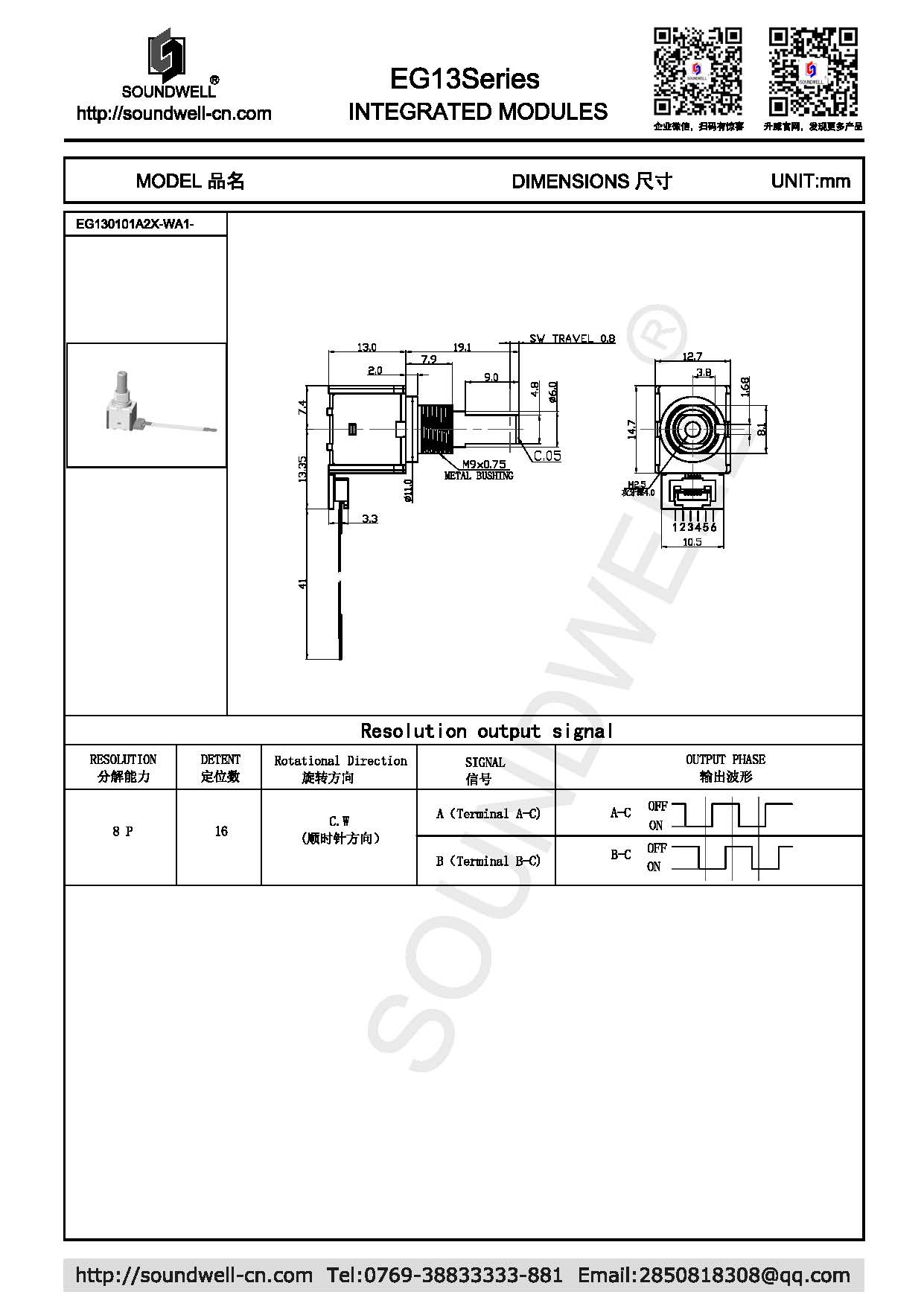

Encoder model： |
EG13 series |
|
| Applications： |
Automotive air conditioners, home appliances, audio and other related electronic equipment |
|
| Product Features: |
An optical encoder with modular design |
|
| Functions： |
Main functions are volume adjustment, temperature adjustment, function selection, etc |
|
| Main Specifications: |
Rated power: DC 5V; Number of detent: 16 Pulses: 8/360° Rotational torque: 160-360gf.cm Press switch force: 450-750gf Working temperature: -40℃~85℃; Rotational life: 30,000 cycles Min; |
ONE、MECHANICAL CHARACTERISTIC
1. Rotational torque: 160-360gf.cm
2. Number of detent: 16 (Step angle: 22.5°±3°)
3. Shaft wobble: 0.3 mm Max
4. Shaft play: 3° Max
5. Switch travel: 0.8±0.3mm
6. Switch operating force: 600±150gf
TWO、ELECTRICAL CHARACTERISTIC
1. Resolution: 8 pulses/360°
2. Phase difference: ≥6ms
3. Rated voltage: DC 5V
4. Insulation resistance: 10M? 60s±5s at DC 50V
5. Dielectric voltage: AC 60 V 60s±5s
THREE、ENDURANCE CHARACTERISTIC
1. Rotational life: 30,000 cycles Min
2. Push operating life: 20,000 cycles Min
Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
